How to boot a dedicated server into a custom OS image using iDRAC

Your Dell server's out-of-band management platform is called iDRAC, and it allows to mount virtual remote media to the server so you can boot from that media and install an operating system.

For your safety, iDRAC is hidden behind the VPN. For your convenience, you can temporarily enable public access to your server’s iDRAC so that no VPN use is required.

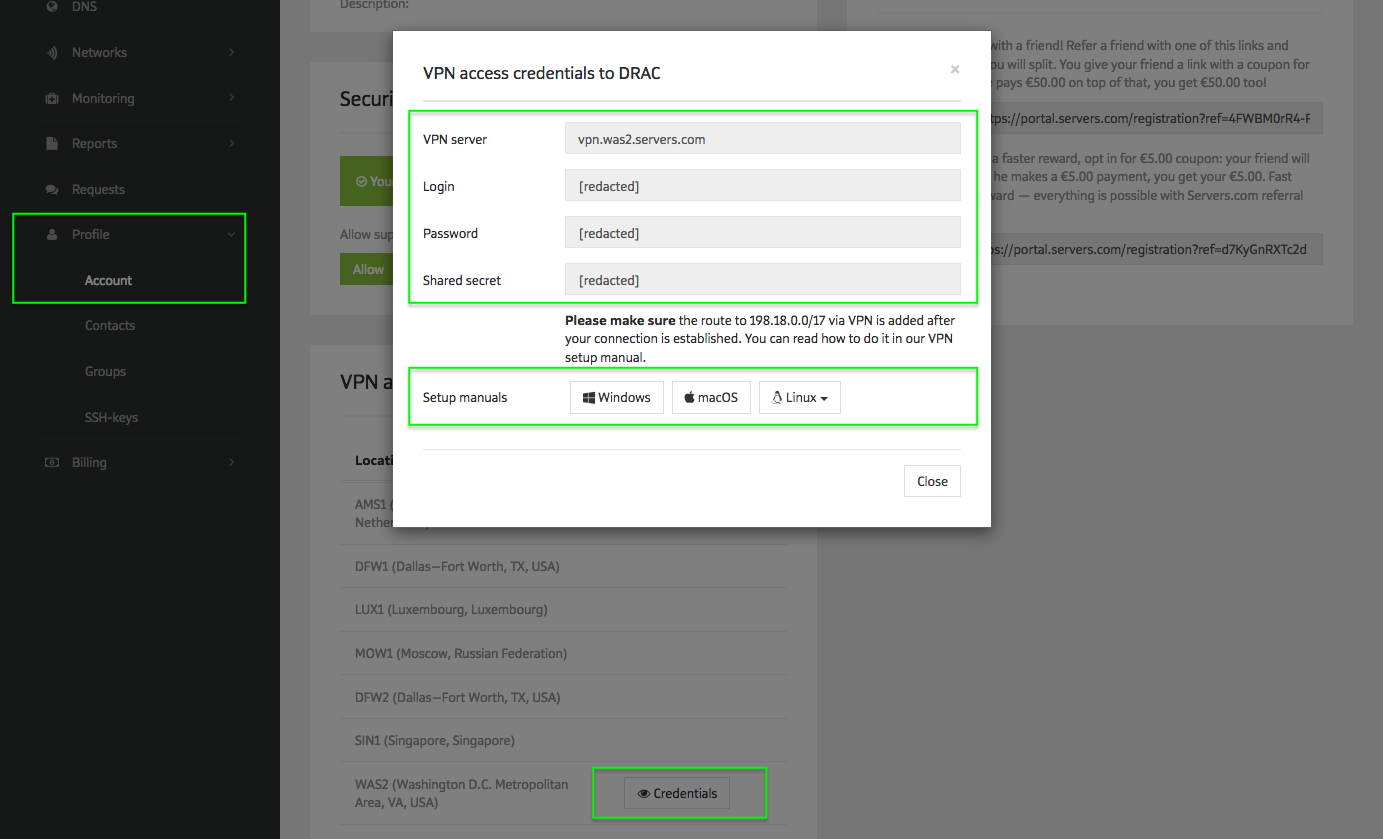

You will find VPN credentials and setup instructions in the "Profile > Account" section of the Customer Portal.

VPN credentials and setup instructions within your account section of the customer portal

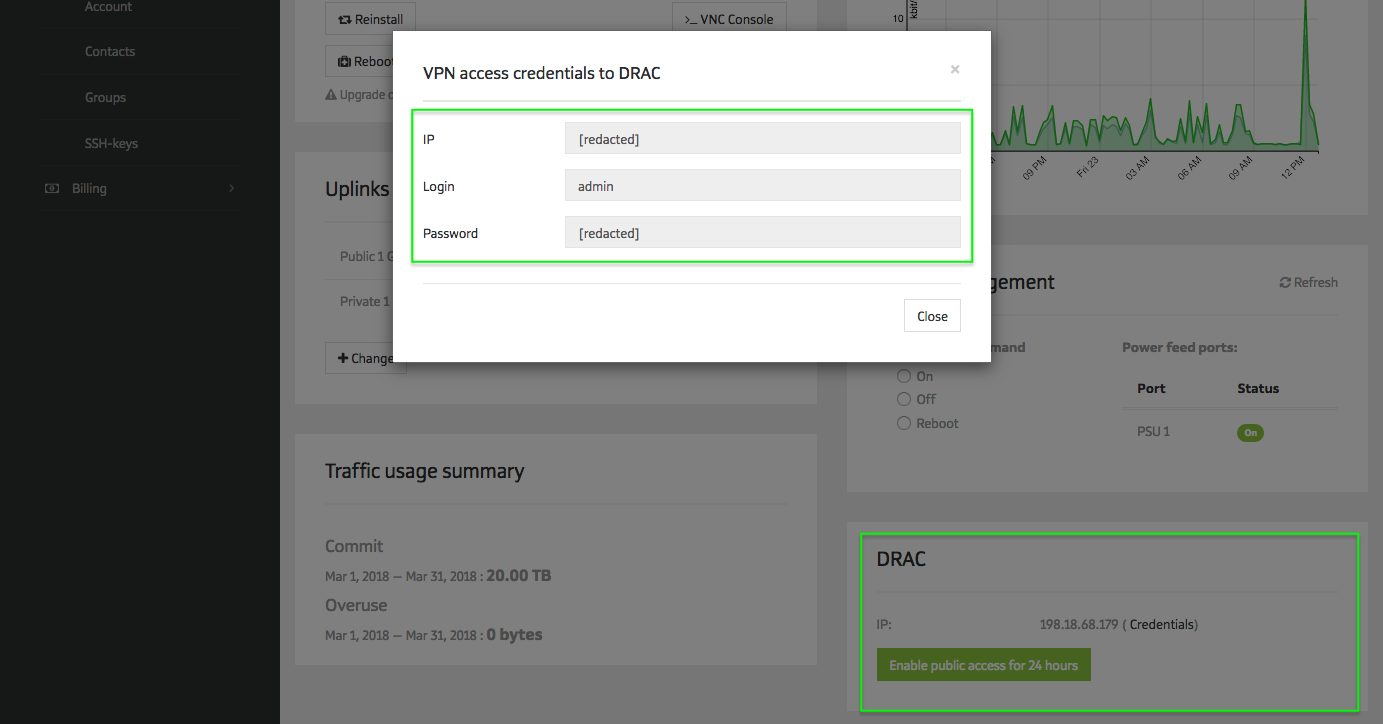

Each server's iDRAC credentials can be found on a server's details page in the Customer Portal, where you can also enable public access. Public iDRAC access is allowed on a temporary basis. Once enabled, it will last for next 24 hours, but you can turn it off ahead of schedule.

Each server's iDRAC credentials can be found on a server's details page in the Customer Portal

Enter the IP address of iDRAC in the address bar of your browser. The browser will warn you about your connection being not secure because of self-signed HTTPS-certificate. Add an exception and continue. Enter previously received iDRAC credentials in the iDRAC authentification page.

Intergrated Dell Remote Access Controller 7

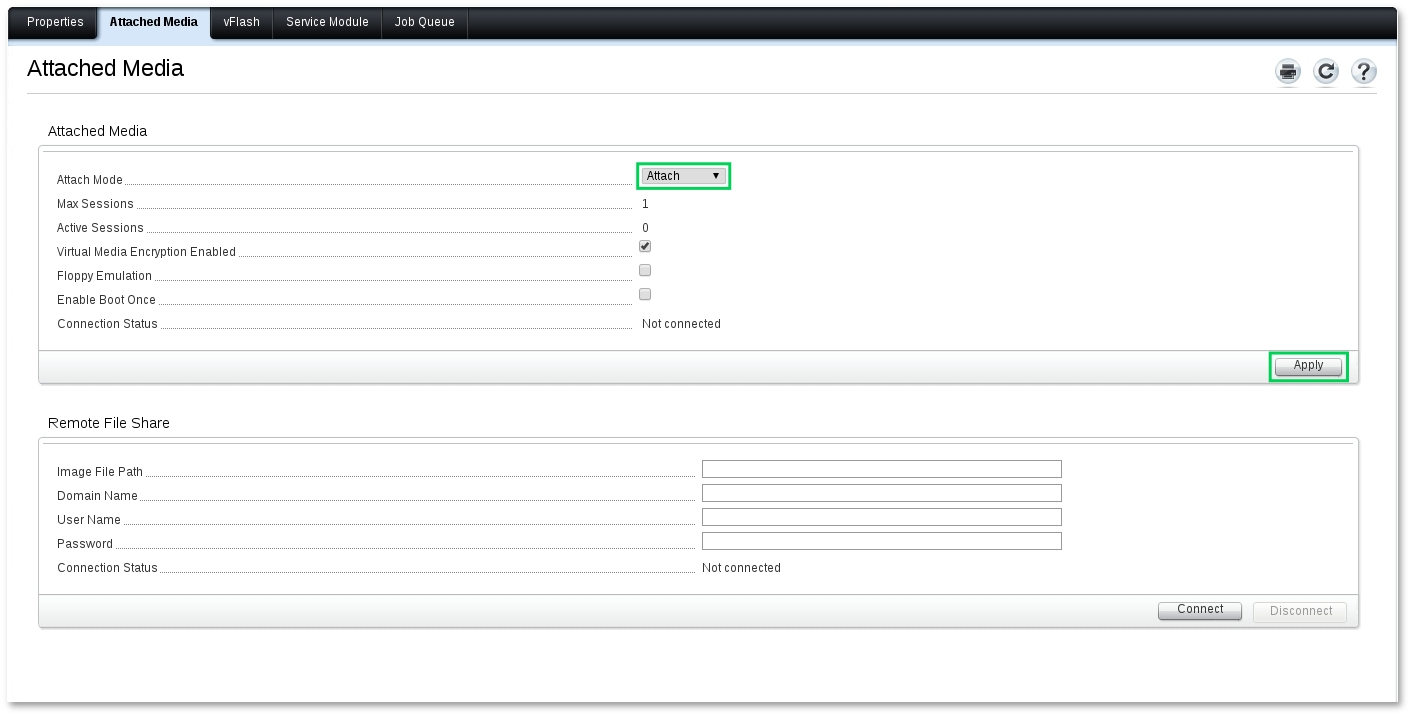

Go to Overview -> Server -> Attached Media. in the drop-down list «Attach Mode», click «Attach» and then click «Apply.

Attached media section

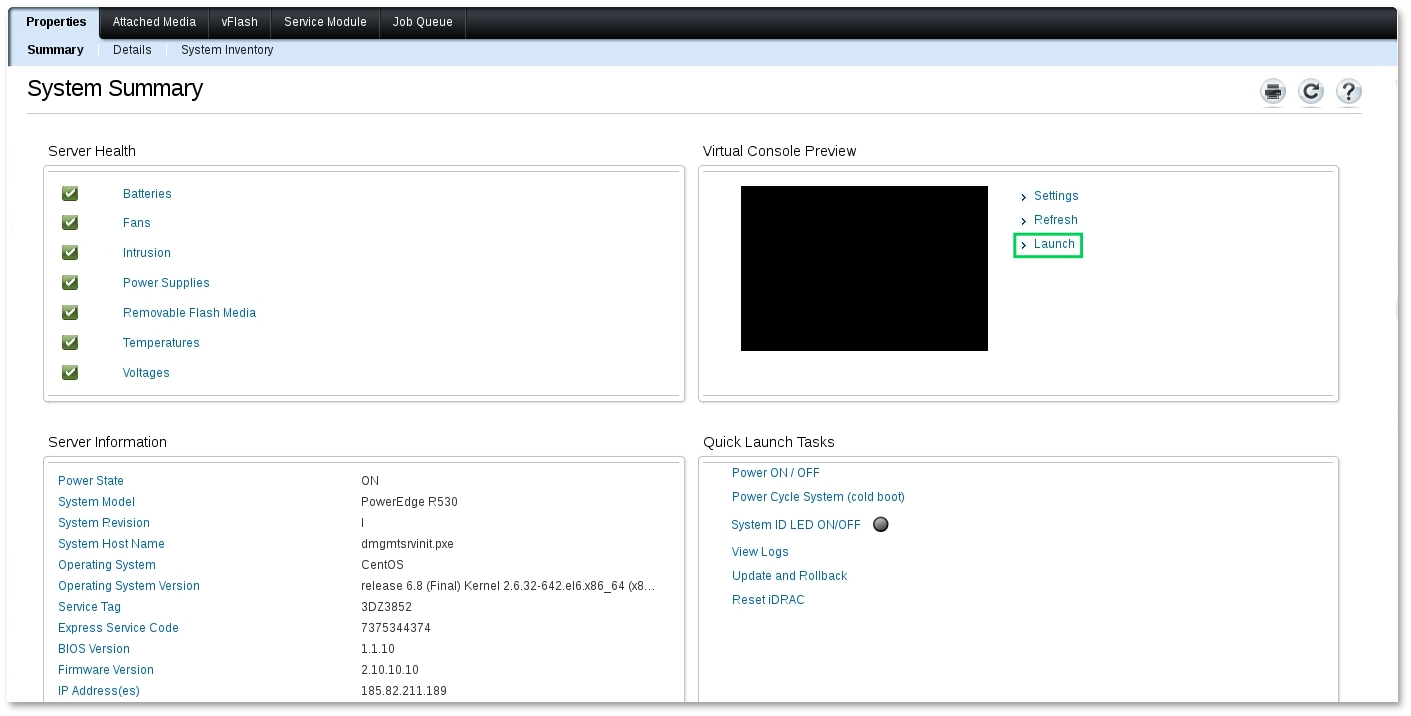

Go to Overview -> Server -> Properties -> Summary. Here click «Launch» in the Virtual Console Preview section. You will be prompted to open or save the file viewer.jnlp. If you can not run the file, make sure that you have installed Java Runtime Environment.

 Virtual Console Preview section

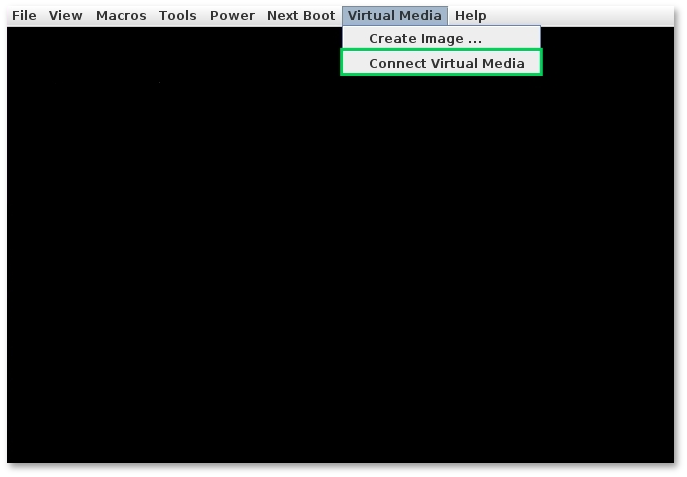

When you open a file viewer.jnlp in Java environment, a connection to the virtual console of the server will be established. In the console, select Virtual Media Main Menu -> Connect Virtual Media.

When you open a file viewer.jnlp in Java environment

After connecting the Virtual Media, you can mount the .ISO image of your operating system. To do this, select Virtual media -> Map CD / DVD in the console main menu. In the new window, specify the path to the image, and then click Map Device.

Virtual media - Map CD / DVD

After that, the mounting is complete. To boot from an image server, reboot the server and select Virtual CD/DVD/ISO as the download source in BIOS.
