    How to setup L2TP over IPsec for iDRAC on Linux Fedora 24

    1. Update list of available packages:

    sudo dnf update

    2. Install required packages:

    sudo dnf install NetworkManager-l2tp NetworkManager-l2tp-gnome libreswan xl2tpd

    3.  Restart your system:

    sudo reboot

    4. Go to Settings → Network. Click "+" symbol under the list of network connections. Choose VPN → Layer 2 Tunneling Protocol (L2TP).

    5. Input login credentials displayed in portal.servers.com
    Name: Specify a name for the connection, for this example we used "VPN test"
    Firewall Zone: Default
    Gateway: VPN server
    User name: Login
    To enter the password click "?" symbol in input field and select "Store the password only for this user"

    How to setup L2TP over IPsec for iDRAC on Linux Fedora 24

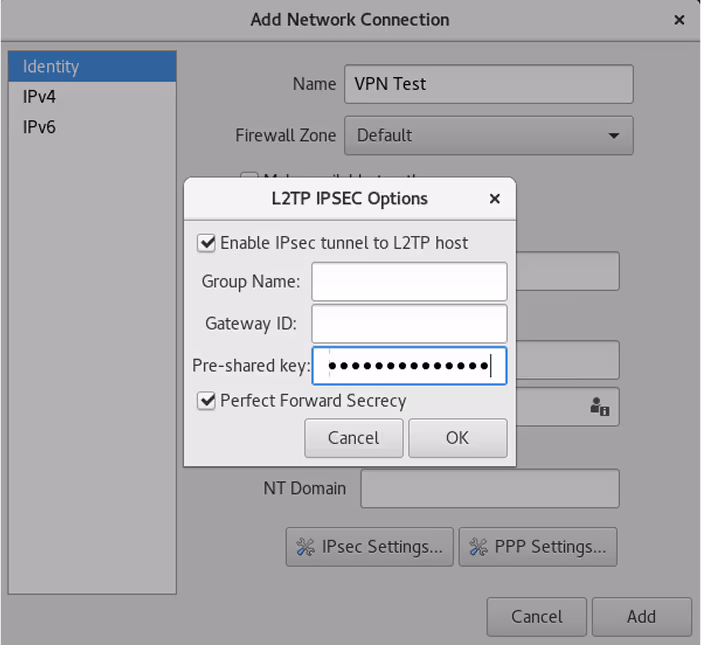

    6. Click "IPsec Settings" and check the "Enable IPsec tunnel to L2TP host" box. Now enter the "Pre-shared key", using the Shared secret from portal.servers.com. Leave the rest of the fields blank.


    How to setup L2TP over IPsec for iDRAC on Linux Fedora 24

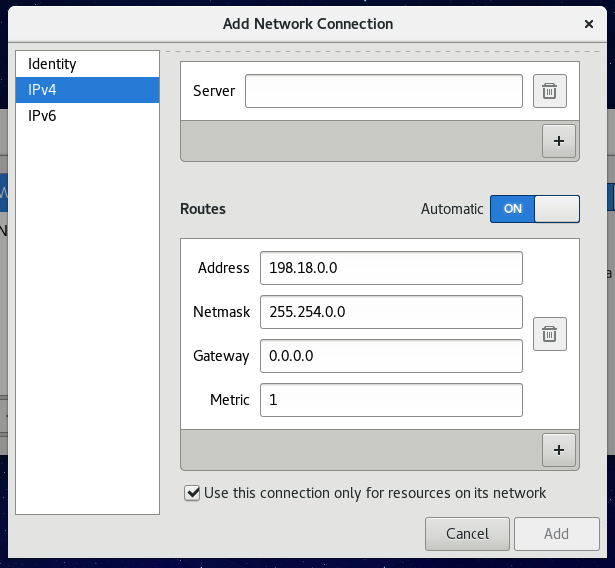

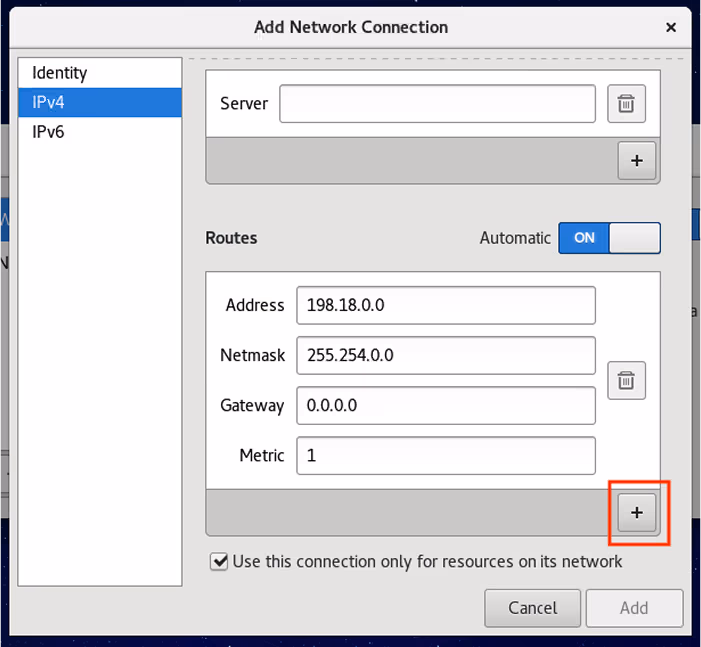

    7. Go to "IPv4" tab and scroll down to "Routes" section. Add a route as shown below:

    How to setup L2TP over IPsec for iDRAC on Linux Fedora 24

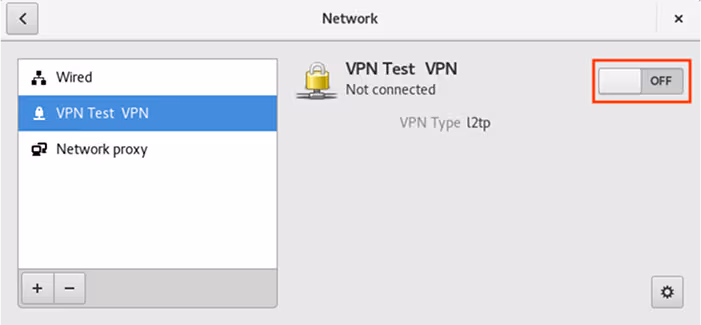

    8. Save your connection by pressing "Add" button.

    How to setup L2TP over IPsec for iDRAC on Linux Fedora 24



    9.  Now you can access your iDrac via address specified on server's page on portal.servers.com.
