How to update iDRAC

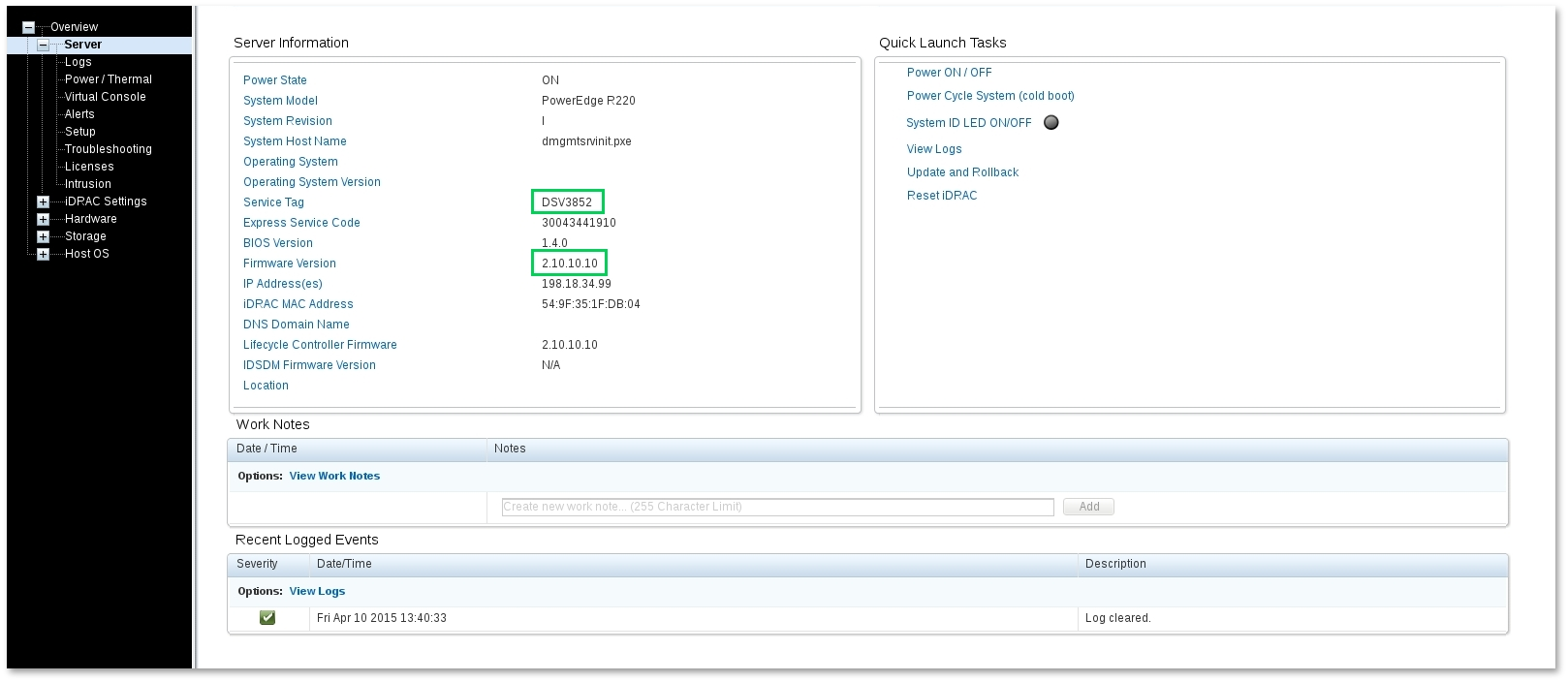

Before the update, you must check the current firmware version. To do this, connect to iDRAC, go to Overview -> Server-> Properties -> Summary. In the 'Firmware Version' field, you can see the current firmware version. The field 'Service Tag' is the serial number of the server, which you will need to proceed.

How to update iDRAC

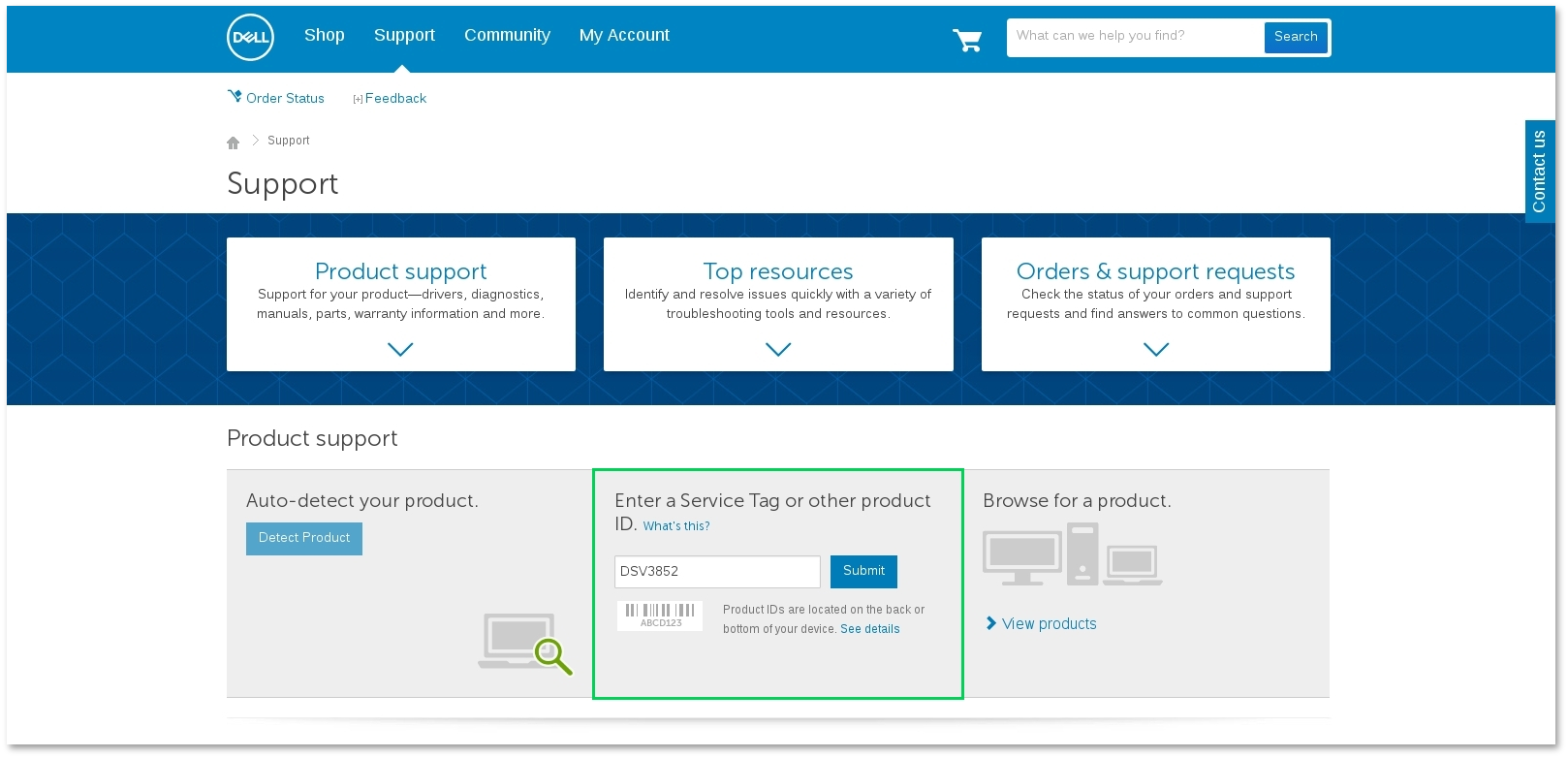

You can find the up-to-date firmware version at support.dell.com. In the 'Enter a Service Tag or other product ID' field, type Service Tag and click Submit:

How to update iDRAC

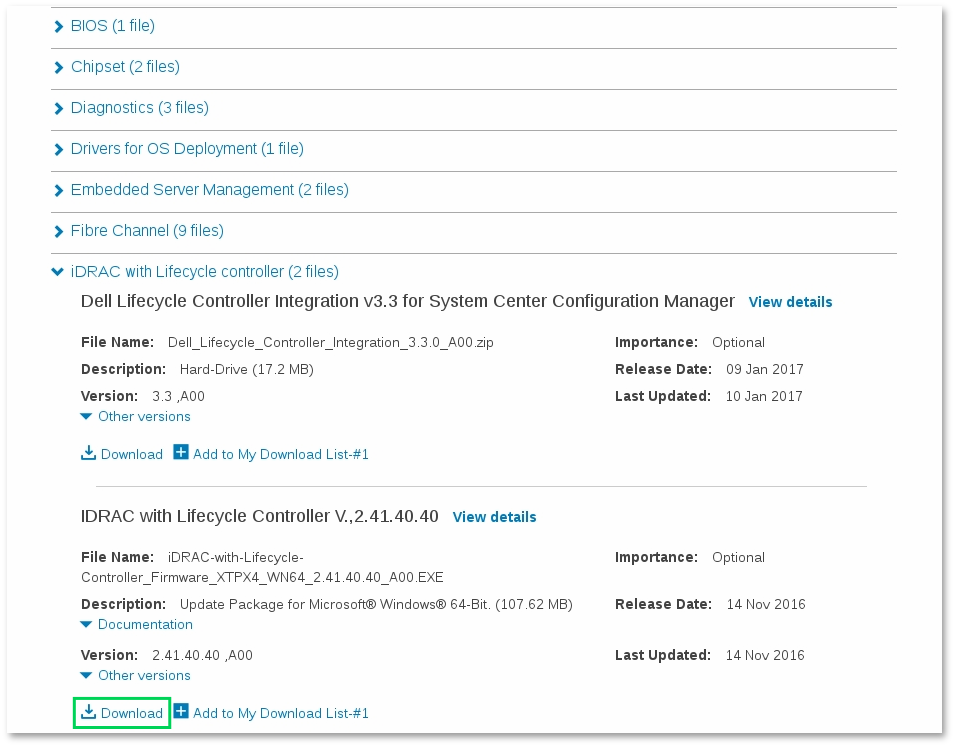

On the next page, you will see the information about the server. In the left box you need to select the section 'Drivers & downloads', find the item 'iDRAC with Lifecycle Controller' where you can find the up-to-date iDRAC firmware. After clicking 'Download', the download will begin.

How to update iDRAC

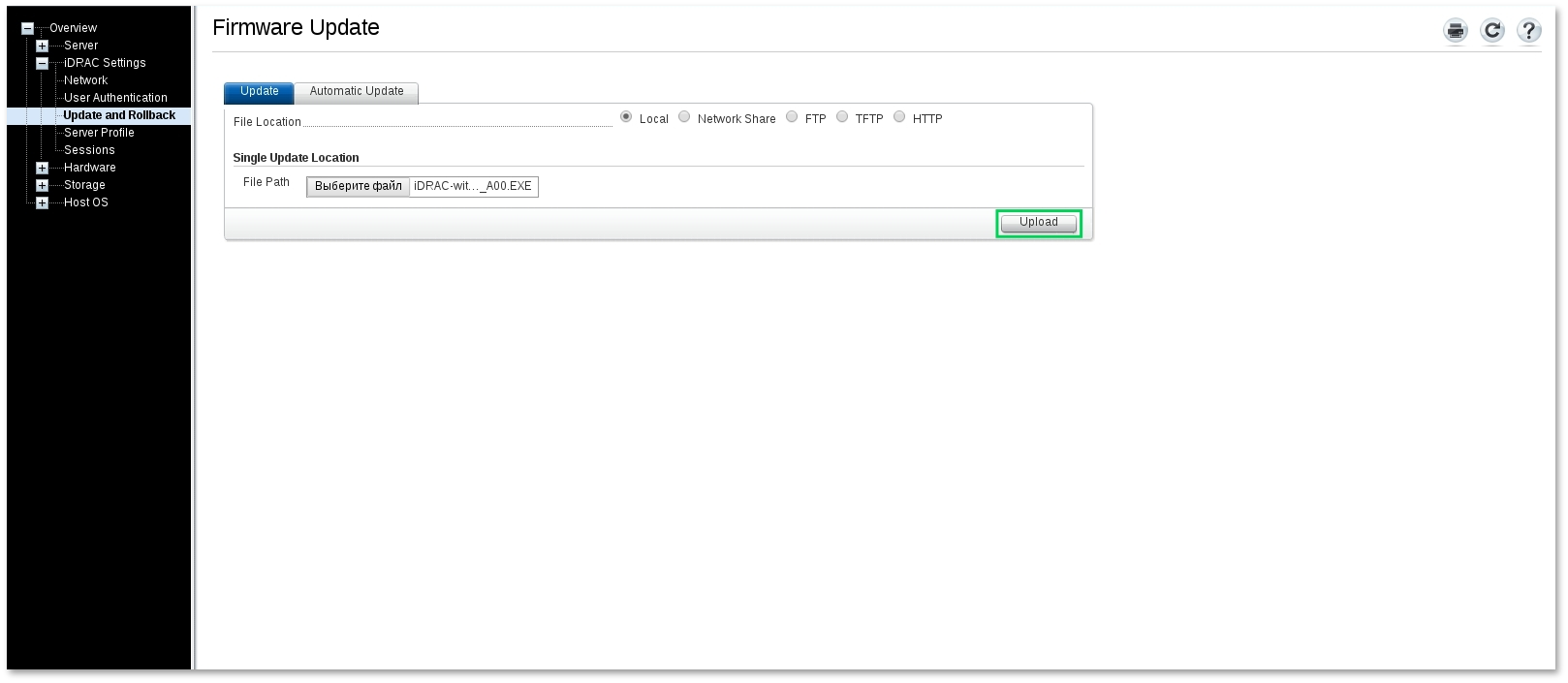

After the download is complete, you need to go to iDRAC Settings -> Update and Rollback. In this section, you must select the firmware file and click Upload.

How to update iDRAC

After uploading the firmware to iDRAC, Update Details window will appear. Tick the downloaded firmware and click Install.

How to update iDRAC

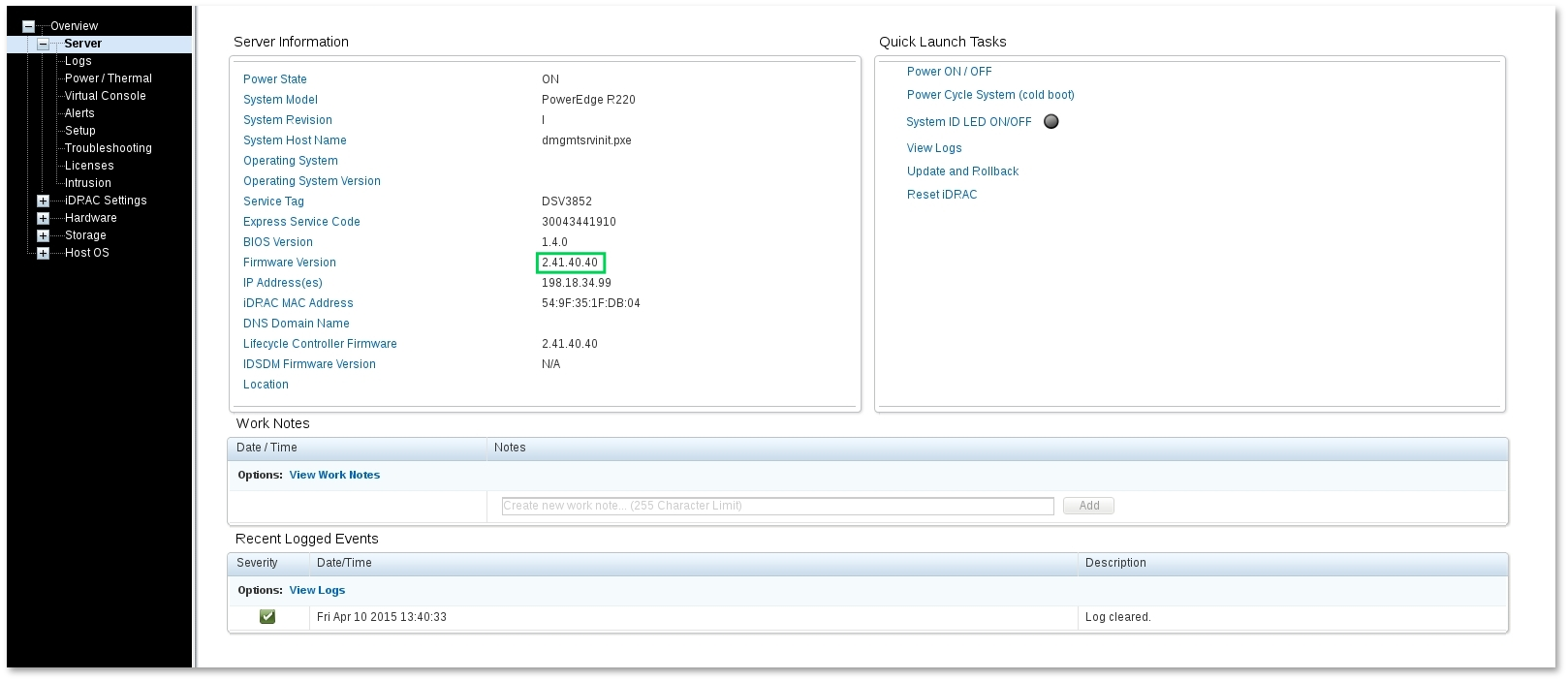

Status updates appear at Overview -> Server -> Job Queue. After the successful update of the firmware, iDRAC will automatically restart. After reconnecting to iDRAC, you can see that it has been successfully updated.

How to update iDRAC
